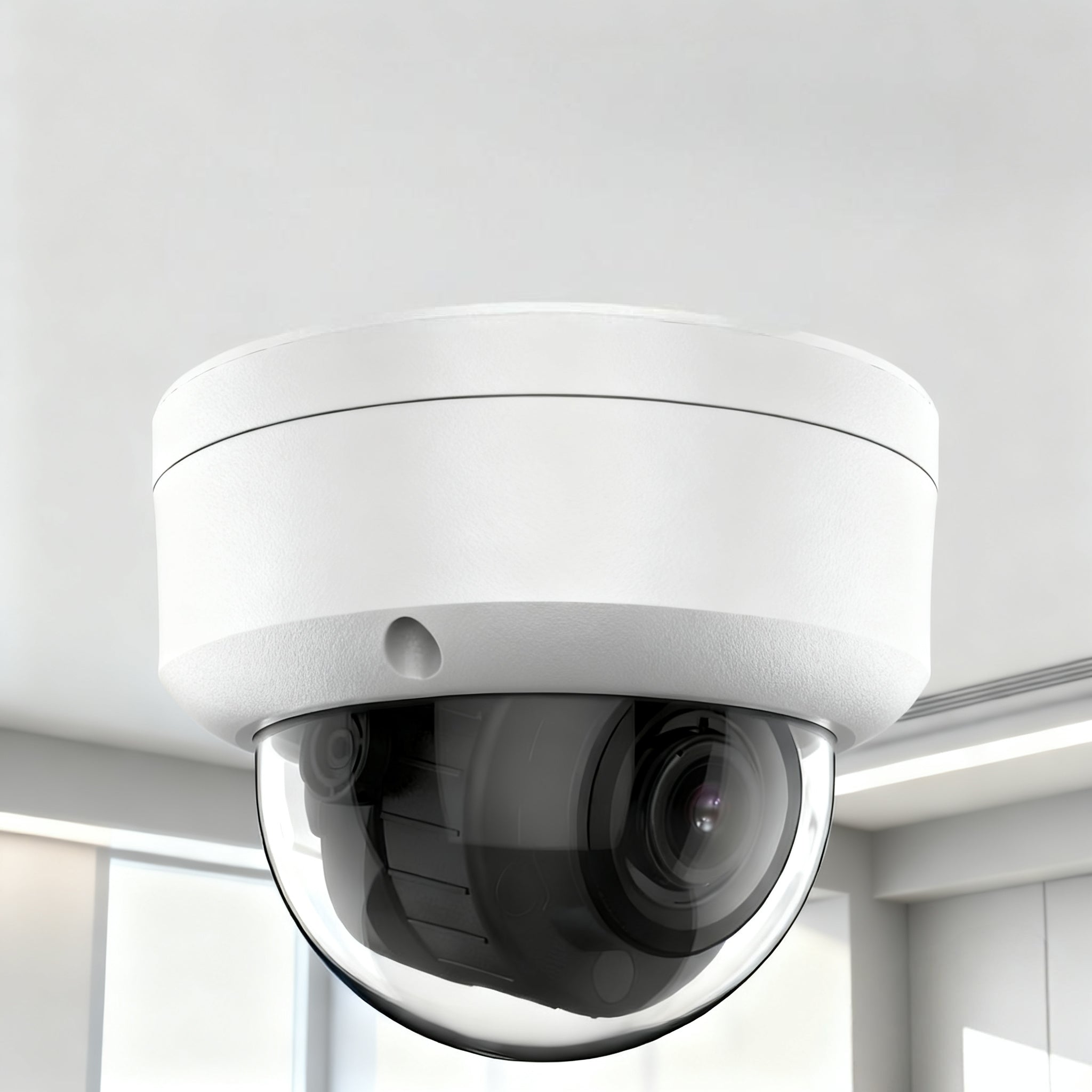

DS-2CD3743G2-IZS 4 MP Human and Vehicle Detection Motorized Varifocal Dome Network Camera
Couldn't load pickup availability
Do you have any question about the Products?Contact us now via sales@hikdistribution.com.
 |
 |
Ask Our Experts Text Chat | Email |
|
Important Information Regarding Order and Pricing
|
Quality Certifications: |
DS-2CD3743G2-IZS product overview
A protected 4MP motorized-varifocal dome camera for scenes that need remote field-of-view adjustment. Its 2.7 to 13.5 mm lens, human and vehicle filtering, 120 dB WDR and audio and alarm interfaces support controlled entrances and exposed commercial sites.
Key features
- 4MP imaging up to 2688 x 1520
- 2.7 to 13.5 mm motorized varifocal lens
- Horizontal field of view from 102 to 31 degrees
- Human and vehicle detection
- Infrared illumination up to 40 m and 120 dB WDR
- IP67 and IK10 protected housing
Best-fit applications
- Commercial entrances and loading areas
- Vandal-prone public or transport locations
- Warehouses and building perimeters
- Backlit scenes needing adjustable framing
Compatibility and pre-order checks
- Measure scene width, mounting distance and target size before setting the motorized lens; zoom cannot correct an unsuitable camera position.
- Verify recorder support for 4MP streams, event filtering, audio, alarms, onboard storage and the intended search workflow.
- Confirm PoE or 12 VDC power, mounting accessories, weather sealing, impact exposure and surge protection.
- Confirm the exact regional firmware, interface requirements and microSD capacity before procurement.
Frequently asked questions
Can the lens be adjusted after installation?
The listing specifies a motorized 2.7 to 13.5 mm lens, allowing remote framing within its range. Final focus and target detail still require an on-site test.
Does it support local recording?
The listed microSD slot supports capacities up to 512 GB. Confirm card compatibility and configure health monitoring, retention and overwrite behavior.
What is the benefit of IK10 protection?
IK10 indicates a listed impact-resistance level for the housing. Correct mounting and cable protection remain necessary in exposed locations.
Related planning resources
Complete product data
4 MP human and vehicle detection Motorized Varifocal Dome Network Camera
- High quality imaging with 4 MP resolution
- Motorized varifocal lens for easy installation and monitoring
- Efficient H.265 compression technology
- Clear imaging against strong backlight due to 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Audio and alarm interface available
- Water and dust resistant (IP67) and vandal-resistant (IK10)
Available models:
Product Data
- Camera
- Image Sensor1/3" Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100, 000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- Lens
- Lens TypeVarifocal lens, motorized lens, 2.7 to 13.5 mm
- Focal Length & FOV2.7 to 13.5 mm, horizontal FOV 102° to 31°, vertical FOV 55° to 18°, diagonal FOV 122° to 36°
- Lens MountØ14
- Iris TypeAuto-iris
- ApertureF1.6
- DORI
- DORI2.7 to 13.5 mm: D: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m
- Illuminator
- Supplement Light RangeUp to 40 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
-
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
-
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
-
Video Compression
Main stream: H.265/H.264/H.264 compression/H.265 compression
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC)H.265 and H.264 support
- Region of Interest (ROI)5 fixed region for main stream and sub-stream
- Audio
- Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC-LC)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK, ISUP
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
-
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with compatible high-endurance memory card, memory card encryption and health detection are supported.
- Clientvideo management software, mobile app, a compatible video management platform
-
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters SwitchYes
- Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Image EnhancementBLC, HLC, 3D DNR, Target cropping
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in micro SD card slot, up to 512 GB
-
Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
-
Alarm
1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium
1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
- Reset KeyYes
- Event
- Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
- Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
- LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output
- General
-
Power
12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: (802.3af, Class 3, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5 W
- DimensionØ153.3 mm × 111.6 mm (Ø6" × 4.4")
- Package Dimension244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8")
- WeightApprox. 890 g (2 lb.)
- With Package WeightApprox. 1480 g (3.3 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- General FunctionAnti-flicker, heartbeat, password reset via email, pixel counter
-
Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
-
EMC
FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 6, 2016);
KC (KN 32: 2015, KN 35: 2015)
-
Safety
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2: 2013);
CE-LVD (EN 60950-1:2005 + Am 1: 2009 + Am 2:2013);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
LOA (IEC/EN 60950-1)
-
Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
-
Protection
IP67 (IEC 60529-2013);
IK10 (IEC 62262:2002)
