HIK Camera Motion Detection Not Working: 5 Fixes

Motion detection is the feature that quietly decides whether a system is useful. When it misses a person walking through the gate, the footage exists but nobody knows to look. When it fires every time a cloud passes, the alerts get ignored.

This guide covers five practical fixes for HIK camera motion detection not working, for both missed events and constant false alarms.

1. Know which detection you have

Pixel-based motion detection compares frames and triggers when enough pixels change. It is simple, cheap and sensitive to light changes, shadows, rain and IR switching.

Smart detection, often branded as human and vehicle detection, uses a model to classify what moved. It ignores swaying trees and headlights but needs enough resolution and a reasonable viewing angle to work well.

The two behave differently and are tuned differently. Smart detection has a sensitivity and often a target size filter; pixel detection has sensitivity, zones, thresholds and sometimes a schedule per zone.

Check the specification before troubleshooting. Trying to tune a smart detector with pixel-level settings wastes an hour.

2. Fix 1: confirm it is enabled and scheduled

Open the event settings and confirm motion detection is on for the channel. It is common to find it disabled after a firmware update or a configuration restore.

Check the arming schedule. A camera armed only from 22:00 to 06:00 will look broken during a daytime test, and the schedule is often left at a default that does not match the site.

Check the recording schedule separately. Motion detection can trigger an event while the recorder is set to record continuous only, so the event list looks empty even though the detector works.

Confirm the recorder is receiving events from the camera. On the event page, the camera's motion icon should flash when you walk past.

If the camera is third-party, confirm the recorder supports its event type. A camera that sends ONVIF events may not expose motion the same way, and the recorder can show a generic alarm instead.

3. Fix 2: sensitivity, zones and target size

Start at medium sensitivity and adjust from evidence. Too high produces constant alerts; too low misses slow movement.

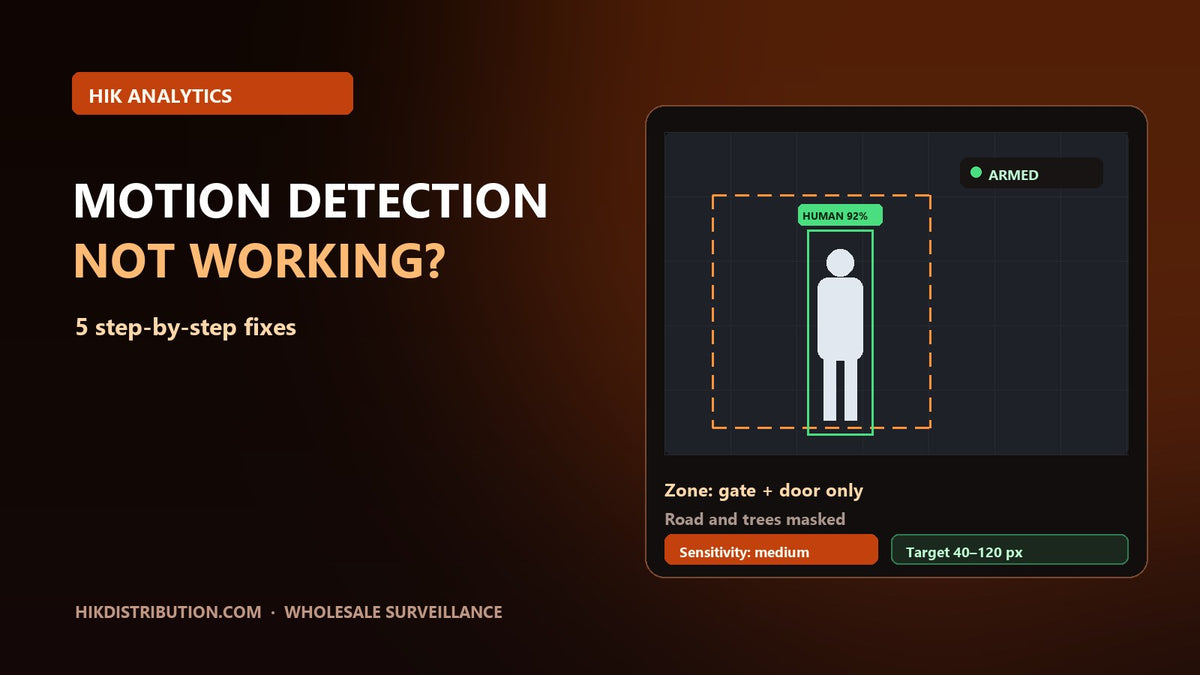

Draw zones around the areas that matter: the gate, the door, the cash desk. Exclude the road, the tree line and the neighbour's windows. Zones are the cheapest way to cut false alarms.

For smart detection, set the target size range. A minimum box that is too large misses a person at distance; too small triggers on cats and moving litter.

If the camera supports direction rules, use them. "Entering only" on a doorway removes most of the traffic that passes by.

Sensitivity scales are not standardised. Medium on one model can behave like high on another, so tune by observation rather than by copying a number from a forum.

4. Fix 3: light, shadows and IR switching

Pixel detection reacts to light changes. A cloud passing, a headlight sweeping the wall, or the IR-cut filter switching at dusk can trigger a burst of events.

Watch the event list around dusk and dawn. If the bursts cluster at those times, the switch is the cause, not movement.

Shadows from trees and flags are another classic. Either mask the area or move to smart detection, which classifies the object rather than the pixel change.

Rain, snow and insects near the lens also trigger pixel detection. A dirty dome makes it worse, because the camera sees changing blur as motion.

If bursts appear at fixed times, check the schedule against the site routine: a cleaner arriving at 06:00 with a cart is a real event, not a fault.

5. Fix 4: scene, angle and resolution

Smart detection needs pixels on target. A person who is 40 pixels tall at the far end of a car park will not be classified, no matter how the sensitivity is set.

Check the angle. A camera looking down a long corridor sees people small and foreshortened; a camera at 3 m looking across the path sees them clearly.

Check the frame rate and shutter. A very low frame rate can skip the moment, and heavy motion blur reduces classification accuracy at night.

If the camera is zoomed too wide, narrow the field of view or add a second camera for the far area.

As a rough guide, detection needs about 40 pixels on the target, recognition needs around 80 and identification needs 120 or more. Measure the distance from the camera to the gate and check the lens focal length against those numbers.

6. Fix 5: linkage, notifications and the recorder

If the camera triggers but no alert arrives, the detector works and the linkage does not. Check the linkage action: recording, alarm output, email, push notification, buzzer.

Check the recorder's notification settings and the app's permissions. A phone that has disabled notifications will look like a broken system.

Check the event type filter in the app. Viewing "alarm inputs" while the events are "motion" shows an empty list.

Confirm the recorder's storage is healthy. A full or failed disk can stop event recording while live view still works.

If the site uses multiple recorders, confirm the camera is linked to the recorder that sends the notifications.

On Android, battery optimisation can silence the app after a while. On iOS, check that notifications are allowed for the app and that Focus mode is not filtering them. These are common "the system is broken" reports that are really phone settings.

For email alerts, test the SMTP settings with a simple message before blaming the detector. A blocked port or an expired mailbox password stops alerts without touching the camera.

7. Missed events vs false alarms

These are opposite problems and need opposite fixes. Missed events usually mean sensitivity is too low, the zone excludes the path, the target is too small, or the schedule is wrong.

False alarms usually mean sensitivity is too high, the zone includes the road or trees, pixel detection is reacting to light, or the minimum target is too small.

Write down which problem the site reports before changing anything. Turning sensitivity up to fix missed events often creates the false-alarm complaint a week later.

A 24-hour review of the event list tells you which problem you actually have. Look at the time distribution, not just the count.

8. A tuning routine that works

Start with zones, then sensitivity, then target size, then schedule. Change one variable at a time and record what you changed.

Run a walk test: approach, cross, linger and leave. Then review the captured events and the missed moments.

Do the walk test at the same time of day as the incidents the site cares about. A daytime test tells you little about night performance.

Leave it for 24 hours and review again. Day, night and shift changes reveal faults that a five-minute test cannot.

Document the final settings per camera. Sites with dozens of cameras drift without a record, and the next technician starts from scratch.

Re-check the settings after any firmware update. A major version can reset detection rules, and the site may run for months before anyone notices the alerts stopped.

For interoperability, analytics metadata can be exposed over ONVIF, and system design guidance is covered by standards such as IEC 62676 for video surveillance systems.

9. FAQ

Why does motion detection not trigger at night? IR switching, low light and slow shutter reduce contrast. Check the event list at dusk and adjust the schedule or switch to smart detection.

Why do I get alerts with nobody there? Light changes, shadows, rain or insects. Use zones and smart detection, and lower sensitivity.

Does motion detection record continuously? No. It records events or triggers an action, depending on the recorder settings.

Can I use motion detection without a recorder? Some cameras support SD-card recording and push notifications on their own.

Why do notifications stop after an app update? Check notification permissions and the event filter in the app.

Is smart detection better than pixel motion? Usually yes for outdoor sites, if the resolution and angle are adequate.

How sensitive should it be? Start at medium, then tune with a walk test and a 24-hour review.

Why does one camera work and another not? Compare the schedule, zones, firmware and view angle. The faulty camera usually has a local setting difference.

Does rain cause false alarms? With pixel detection, often. Smart detection and zones reduce it, but heavy rain can still affect the image.

Can motion detection work with a PTZ camera? Yes, but a moving camera changes the scene constantly. Use presets and smart tracking rather than pixel detection while the camera moves.
