Surveillance network selection
Camera networks depend on more than port count. Calculate stream traffic and PoE load, map cable and wireless paths, then select switches and bridges with capacity for uplinks, expansion and the installation environment.
Match port count, per-port class, total power budget, uplink speed and management needs.
Find PoE switches Unmanaged switchesUse for simple topologies after verifying speed, power, environmental and troubleshooting needs.
Find unmanaged switches Smart and managed switchesReview VLAN, monitoring, redundancy, PoE control and configuration requirements.
Find smart switches Wireless bridges and CPECheck line of sight, distance, interference, throughput, mounting and weather exposure.
Find wireless links Network camerasEstimate realistic stream bitrate and power from the exact camera plan.
Compare network cameras NVR and recordingCoordinate recorder inputs, uplinks, camera networks, storage traffic and remote access.
Review NVRs70 Products
Network design guide
A stable video network needs realistic bitrate, power and distance calculations. Uplinks, wireless capacity, surge protection, segmentation and maintenance access should be designed before hardware selection.
Draw every camera connection, intermediate switch, building link, uplink and recorder interface. Group devices by physical area and failure domain so one cable or switch fault does not silently remove an unexpected part of the site.
Add main and secondary streams using intended resolution, frame rate, codec and scene activity. Include playback, remote viewing and headroom, then check every switch fabric and uplink rather than only the edge ports.
Check each device power class and maximum demand, switch per-port limits and total PoE budget. Include infrared, heaters, PTZ movement, accessories, cable loss and reserve instead of using typical daytime consumption alone.

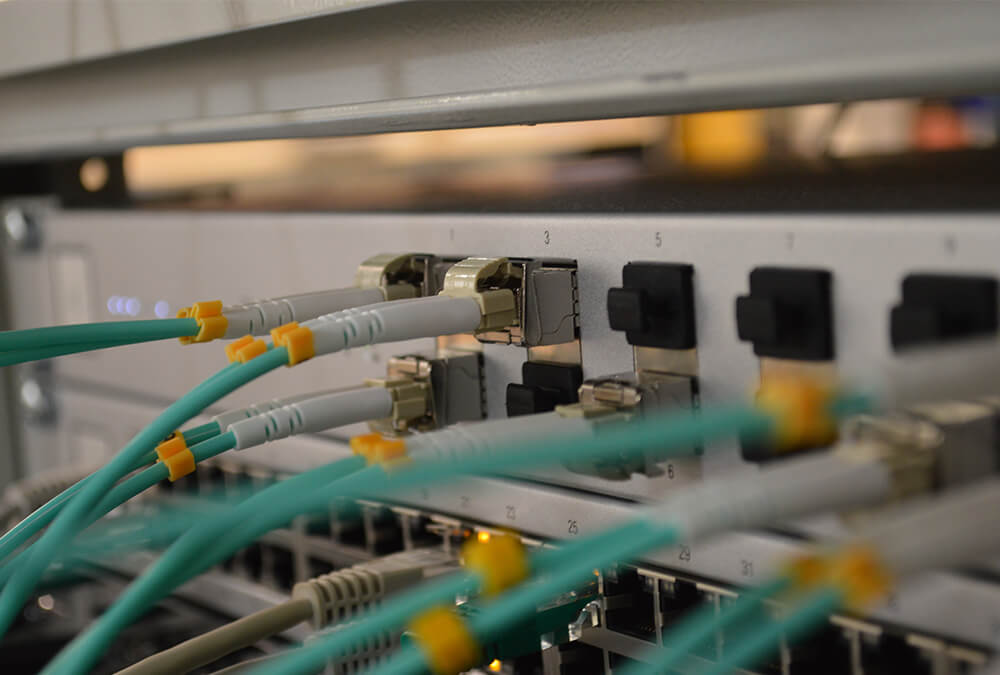

Standard Ethernet distance, electrical exposure, building separation and line of sight influence the medium. Use fiber where isolation or distance requires it and test wireless links for interference, capacity, weather and alignment.
Use controlled management access, VLANs where appropriate, surge protection, grounding, labeled ports and configuration backups. Document power supplies, uplinks and spare capacity so faults can be diagnosed without disrupting the complete system.
| Factor | What to check | Why it matters |
|---|---|---|
| Ports and speed | Camera count, port rate, uplink rate, switch fabric and expansion | Prevents edge or uplink congestion as the system grows. |
| PoE | Standard, per-port power, total budget, supply and cable loss | Ensures all connected devices remain powered at maximum demand. |
| Transmission path | Copper length, fiber, extenders, building separation and wireless line of sight | Matches the medium to distance and electrical conditions. |
| Management | VLAN, monitoring, PoE control, redundancy and configuration backup | Supports segmentation, diagnostics and controlled recovery. |
| Environment | Temperature, enclosure, dust, moisture, surge, grounding and mounting | Reduces failures at outdoor or industrial network points. |
| System fit | Camera bitrate, recorder interfaces, remote viewing and time synchronization | Connects the network specification to recording operation. |
Add the maximum demand of every connected device, account for cable loss and operating conditions, then keep reserve below the switch's total budget.
Many individual cameras use less than 100 Mbps, but uplinks and aggregated paths often need higher capacity. Calculate the actual stream total.
Standard Ethernet is normally designed around a 100-meter channel. Extensions require supported equipment and verification of power, bandwidth and cable quality.
Use it where cable is impractical and clear line of sight, interference, throughput, mounting, power and weather conditions have been tested.
Use unmanaged equipment for simple, controlled networks. Choose managed features when VLANs, monitoring, redundancy, PoE control or remote diagnostics are required.
Provide camera count and power, bitrate, cable distances, uplinks, buildings, wireless paths, environment, management requirements and destination.
Long-distance Ethernet, PoE extension and wireless throughput depend on cable, interference, power and environmental conditions. Verify the exact topology and product limits on site.
