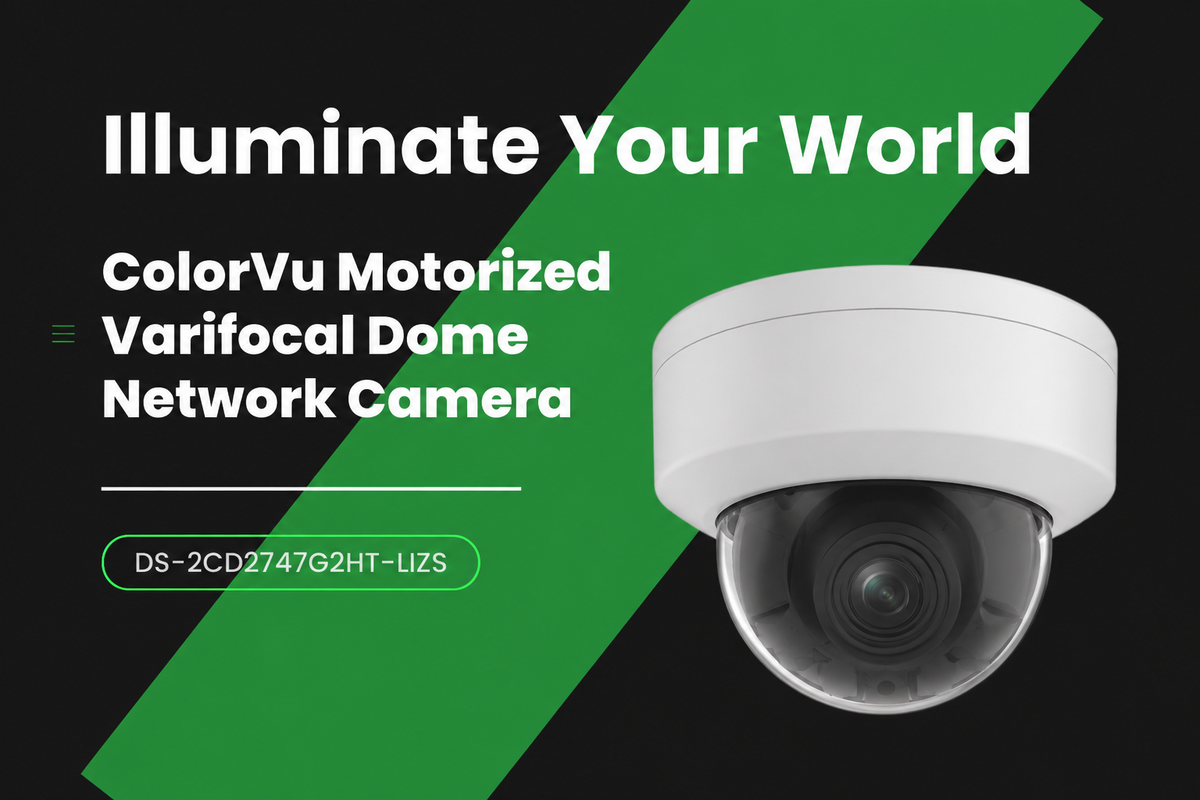

DS-2CD2747G2HT-LIZS Setup Guide: Lens, Lighting and Night Imaging
Setup answer: Configure the Hikvision DS-2CD2747G2HT-LIZS from the target scene backward. First set the 2.8–12 mm motorized lens for required detail, then tune exposure and 130 dB WDR, choose the appropriate Smart Hybrid Light behavior, and validate the result at day, dusk and night. Resolution alone cannot correct poor angle, glare or excessive target distance.
Verified model snapshot
- Maximum resolution: 2688 × 1520 (4 MP)
- Sensor: 1/1.8-inch progressive-scan CMOS
- Lens: motorized varifocal, 2.8–12 mm
- Horizontal field of view: approximately 114.6° to 41.8°
- Low-light listing: color at 0.0008 lux with F1.2 and AGC on; 0 lux with supplement light
- Dynamic range: 130 dB WDR
- Supplement light: infrared and white light, listed up to 40 m
- Protection: IP67 and IK10
Check the exact regional variant and firmware on Hikvision’s official DS-2CD2747G2HT-LIZS product page, and confirm line-item specifications in the official datasheet.
Step 1: define the evidence target
Write down what the image must show before adjusting the lens. “Cover the entrance” is not specific enough. A useful target states the subject, distance, movement, direction, lighting and the decision an operator must make.
Overview
Show activity across a broad area. Use the wider end of the lens, but accept lower pixel density on distant subjects.
Recognition-level detail
Narrow the view around a controlled route such as a doorway or corridor and validate with representative subjects.
Incident evidence
Balance context and detail so the clip explains what happened, not only who or what entered the frame.
Step 2: set the 2.8–12 mm motorized lens
The wide end captures more of the scene; the tele end narrows the view and increases target detail. Do not zoom solely from a live preview at installation height. Place a representative target at the near, middle and far points, then check recorded—not only live—video.
| Lens choice | Advantage | Common risk |
|---|---|---|
| Wider field of view | More scene context and fewer gross blind areas | Insufficient detail at the target distance |
| Narrower field of view | More pixels on the selected route or object | Loss of side context and greater sensitivity to aiming error |
| Mid-range compromise | Balances context and detail for controlled scenes | May satisfy neither goal if the requirement is not explicit |
After zooming, refocus and recheck the final enclosure position. A dome cover, nearby wall or dirty surface can introduce reflections that were not visible during an open-housing setup.
Step 3: choose a lighting behavior that fits the site
Smart Hybrid Light provides infrared and white-light options. The correct mode depends on ambient light, the value of color detail, reflections, nearby residents or road users, and the site’s policy for visible illumination.
Infrared-priority operation
Useful when discreet illumination is preferred. Verify faces, clothing, vehicle surfaces and reflective materials because monochrome rendering changes available evidence.
White-light operation
Can preserve color information where allowed and appropriately aimed. Check glare, light spill, insects, rain and user acceptance.
Event-linked hybrid operation
May keep infrared as the normal state and use white light under a supported event rule. Test switching delay, exposure recovery and nuisance triggers with the exact firmware and recorder workflow.
The manufacturer’s “up to 40 m” supplement-light figure is not a guarantee of identification detail at 40 m. Mounting, target size, reflectance, weather, lens setting and exposure all affect the result.
Step 4: tune exposure and WDR at the difficult time
Configure the camera when the scene is hardest—not only at midday. Doorways, headlights, reflective signs and changing outdoor light can force a trade-off between bright and dark regions.
- Use WDR when strong backlight hides the subject, then check motion detail and noise.
- Set a shutter range that preserves moving targets without making the scene excessively dark.
- Control gain so noise does not consume bitrate or obscure fine detail.
- Avoid pointing supplement light at close walls, soffits, glass or reflective objects.
- Check compression artifacts in the recorded stream at the configured bitrate.
Night commissioning test card
- Walk a representative route toward, across and away from the camera.
- Test dark clothing, light clothing and reflective materials.
- Introduce the expected doorway, vehicle or sign backlight.
- Record infrared, white-light and selected hybrid behavior.
- Review live view and exported footage on a normal operator display.
- Confirm event zones after the lens, exposure and lighting settings are final.
- Record the accepted firmware, configuration and sample clips.
Repeat a shorter test after cleaning, seasonal lighting changes, a major firmware update or any change to the field of view.
Recorder and network checks
Confirm the camera’s configured resolution, frame rate, codec, bitrate, audio and event metadata against the proposed recorder. Basic video can work while a specific event, search feature or configuration function remains unsupported.
- Reserve PoE and switch capacity for startup and environmental conditions.
- Calculate storage from configured or measured bitrate, not resolution alone.
- Use synchronized time and test evidence export with the final NVR.
- Verify user roles, secure remote access, firmware process and configuration backup.
- Check supported interoperability functions rather than relying on a generic compatibility label.
Compare cameras in HIKD’s network camera collection, select a recorder from the NVR collection, and use the camera/NVR matching guide before final ordering.
What this model does not solve by itself
- A wider field of view does not guarantee identification detail at distance.
- White light does not remove glare, weather or privacy considerations.
- WDR cannot recover detail that was never captured because of angle or motion blur.
- IP67 and IK10 do not replace correct sealing, mounting, surge protection or maintenance.
- An analytics label does not prove performance in a specific scene.
