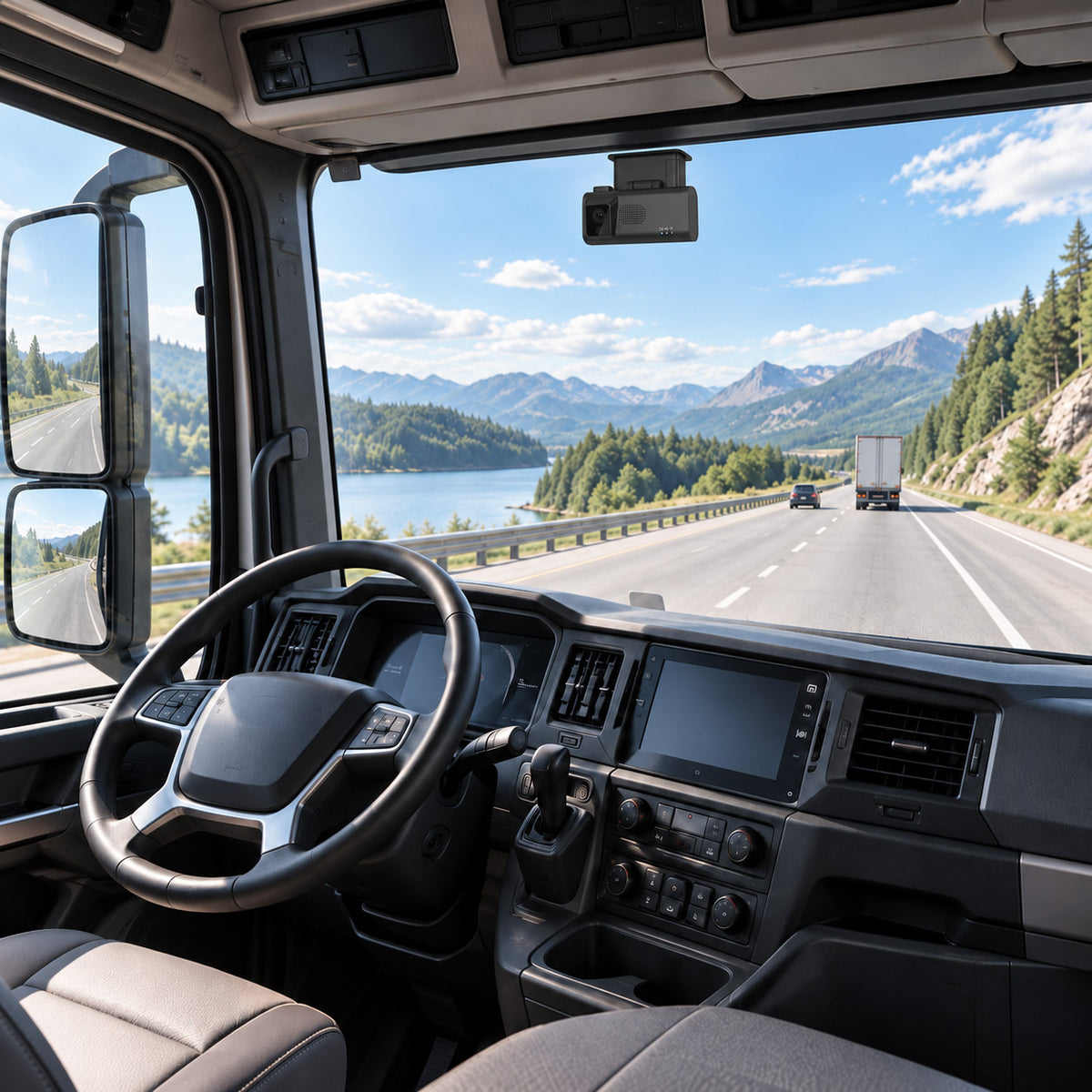

AE-DI2022-E32 Distribution Dashcam

Name: AE-DI2022-E32 Distribution Dashcam
Brand: HV-LINE
Price: 474.00 USD
Availability: InStock

In stock

SKU: AE-DI2022-E32

$474.00

Our standard leading time is estimated to be 40 working days, even if it is shown as in stock, please confirm this inventory and lead time before purchasing.

Unless otherwise stated, customs duties are not included in the final purchase price.

Get More Information
Do you have any question about the Products?Contact us now via sales@hikdistribution.com.

Ask Our Experts

Text Chat | Email

Important Information Regarding Order and Pricing

The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Please contact us to get the latest discount information (we can offer lower prices than all dealers).
Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
Please note that the prices mentioned are subject to the final Proforma Invoice (PI) prices, which will be provided to you after confirming your order. Additionally, the shipping costs for the products will be calculated separately and added to the total value of the order.
Final Price Explanation: Our prices include VAT and shipping charges. Please note that customs duties are not included.
If you have any further questions or need assistance, please don't hesitate to reach out. We are committed to providing you with the best price and service for your order.
We guarantee that the products we sell are official original products with the latest firmware versions. If you require the latest firmware for this product, please contact our customer service directly.
As authorized distributors, all orders and customs documents are provided by the original manufacturer. We also provide official technical support. For project-based orders, local warranty is provided by the manufacturer, while we provide warranty for dealer orders.

If you have any other inquiries or need further clarification, please feel free to let us know. We are here to assist you.

Quality Certifications:

Video: Supports 2 built-in video channels (front camera fixed at 1080P, interior camera fixed at 1080P).
Audio: Built-in speaker and microphone; supports 1 audio input, 1 audio output, and two-way audio intercom.
Positioning: Supports GPS/GLONASS/GALILEO positioning, with time and speed information overlay on video.
Wi-Fi: Built-in Wi-Fi module, supports AP hotspot connection.
Bluetooth: Built-in Bluetooth module.
4G: Built-in 4G module, supports dual Nano SIM cards (dual SIM, single standby).
Storage: Supports 1 TF card (up to 512GB capacity), supports loop recording with overwrite.
App Support: Allows preview, playback, and parameter configuration via mobile app.
Support HAT_Cloud platform.
G-Sensor: Built-in 3-axis gyroscope; automatically triggers emergency recording and locks video backup upon collision or severe vibration.
Installation & Operation: Simple and user-friendly.

Available models:

AE-DI2022-E32(US)

AE-DI2022-E32(EU)

Product Data

Camera
Image Sensor
Front view: 1/2.8" CMOS

Rear view: 1/2.8 CMOS"
Min. Illumination
Front view: 0.01 Lux

Rear view: support IR
Shutter Speed
Front view: 1/30 s

Rear view: 1/30 s

Lens
Focal Length
Front view: 3.19mm

Rear view: 3.11mm
FOV
Front view:

HFOV: 111°

VFOV: 58°

DFOV: 134.5°

Rear view:

HFOV: 105°

VFOV: 57.5°

DFOV: 124°
Lens Mount
Front view: M12

Rear view: M12
Max. Aperture
Front view: F2.0

Rear view: F2.25

Illuminator
IR Wavelength850nm
Supplement Light TypeIR

Video
Main Stream
CH1: 1920 × 1080 (default)

CH2: 1920 × 1080(default)
Sub-Stream
CH1: 640 × 480(Default)

CH2: 640 × 480 (Default)
Video CompressionH.264 (Default), H.265
Video Bit Rate
Main Stream Video Bit Rate：

CH1: 8Mbps,4 Mbps (Default),2Mbps,1Mbps

CH2: 4Mbps,2 Mbps,1 Mbps (Default),512Kbps

Sub-Stream Video Bit Rate：

CH1: 512Kbps (Default),256Kbps

CH2: 512Kbps,256Kbps(Default)
Stream TypePS Stream
Frame Rate
Main Stream Frame Rate：

10 fps, 15 fps, 25fps, 30 fps available. The default CH1 is 25 fps, and CH2 is 15 fps.

Sub-Stream Frame Rate：

10fps, 15fps, 25fps, 30 fps available, CH1-CH2 default 15 fps.
Video Input2-Channel Video

Audio
Audio CompressionAAC/G711u (Default)/G711A
Audio Bit Rate
G711U: 64 kbps (Default)

G711A: 64 kbps

AAC: 64 kbps
Audio Sampling Rate
G711U: 8kHz(Default)

G711A: 8kHz

AAC: 16kHz
Built-in MicSupport
Built-in SpeakerSupport
Audio Input1-Way, Built-In mic

Wi-Fi
Wi-Fi Protocol802.11 b/g/n/ax
Frequency Range2.4 GHz
Antenna2.4 GHz

Mobile Communication
Frequency
Europe:

LTE-FDD: B1, B3, B5, B7, B8, B20, B28

Latin America:

LTE-FDD: B2, B3, B4, B5, B7, B8, B28, B66

Warning: The device requires industrial SIM card. Normal SIM card is not allowed. We are not responsible for any problems caused by using any normal SIM card.
SIM Card TypeNano SIM card
SIM Card Slot2 (plug-in type, support industrial-grade Nano SIM card, dual-card single waiting)
Dial-upSupport

SNR
Front view: 42dB

Rear view: 42dB
Wide Dynamic Range (WDR)
Front view: Linear

Rear view: Linear
OSDDate, time, GPS latitude and longitude, speed, license plate, and channel name.

Function
bluetoothSupport, BLE5.2

Interface
Local StorageUp to 512GB
Audio
Audio Input：1-Way, Built-In mic

Audio Output：1-Way, Built-In Speaker
Reset Key
1 (pinhole button)

Press (≥1 sec & < 5 sec) to reset the device to restart.

Press and hold the reset key (≥ 5 sec) to restore the default parameter settings.
Power Output1 (10pin BMW)
TF Card StorageSupports 1 TF card (up to 512GB each). Class 10 or above are recommended.

Satellite Positioning
GPS Information Detection
GPS (Global Positioning System)

GLONASS (Global Navigation Satellite System)

GALILEO (Galileo satellite navigation system)

Indicator
Indicator
Record Indicator:

Solid light: Recording normal.

Not on: Recording exception.

4G indicator:

Solid light: 4G signal is normal. Platform connected.

Flashing: 4G signal is normal. Platform not connected.

Not on: No 4G signal.

Wi-Fi Status Indicator:

Solid light: Wi-Fi AP is on. App is connected.

Flashing: Wi-Fi AP is on. APP is not connected.

Not on. Wi-Fi AP is off.
