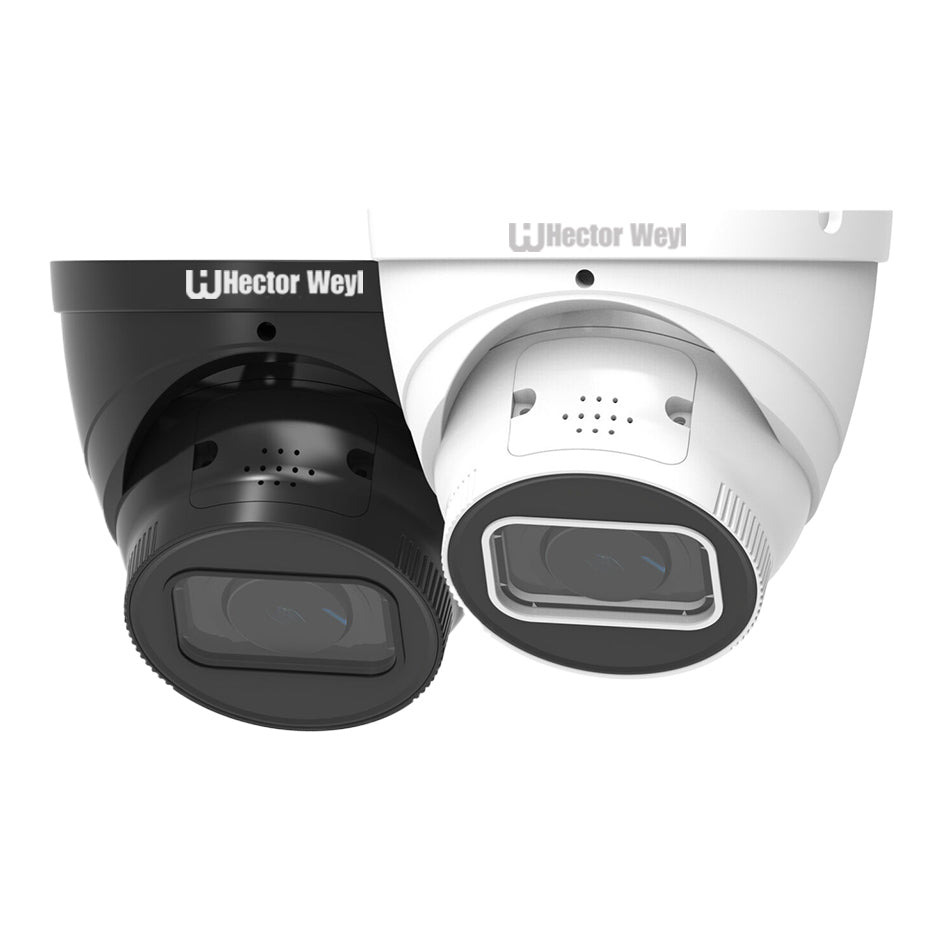

HW-IPC-G3541M-AS 5MP IntelliCore AI Fixed-Focal Eyeball Network Camera
Couldn't load pickup availability
Do you have any question about the Products?Contact us now via sales@hikdistribution.com.
 |
 |
Ask Our Experts Text Chat | Email |
|
Important Information Regarding Order and Pricing
|
Quality Certifications: |
HW-IPC-G3541M-AS 5MP IntelliCore AI Fixed-Focal Eyeball Network Camera Overview
Powered by advanced deep learning algorithms, IntelliCore excels in a multitude of AI-driven functions, including Object Detection, Intrusion and Tripwire alerts, Face Detection, People Counting, and Heat Mapping. Its AMD (Active Motion Detection) 4.0 leverages these algorithms to filter out irrelevant objects with remarkable accuracy, reducing false alarms and providing valuable data for post-event analysis.?
? ? ?5-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.;
? ? ?Outputs max. 5 MP 2688 (H) ¡Á1520 (V) @ (1~25/30fps) ;?
? ? ?H.265 codec, high compression rate, ultra-low bit rate.
? ? ?the max. illumination distance is 60 m.
? ? ?H.264+ /H.265+, flexible coding, applicable to various bandwidth and storage environments;
? ? ?WDR, 3D NR, HLC, BLC, digital watermarking, applicable
? ? ?to various monitoring scenes;
? ? ?2.8mm fixed lens (3.6mm/6mm optional);
? ? ?intrusion, Tripwire( Support the Classification of Vehicle, Human and Non-Motor );
? ? ?Supports max. 256 G Micro SD card; built in Mic;
? ? ?With deep learning algorithm, it supports: face detection, smart object detection, and people counting, etc.
? ? ?AMD;
? ? ?12 VDC/PoE power supply;?
? ? ?IP67 protection.
|
Camera |
|
|
Image Sensor |
1/2.8¡± CMOS |
|
Max. Resolution |
5MP, 2688 (H) ¡Á 1520 (V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual 1/3 s¨C1/100,000 s |
|
Min. Illumination |
0.001Lux(Color); 0.0001Lux (B/W); 0Lux (Illuminator on) |
|
S/N Ratio |
> 56 dB |
|
Illumination Distance |
IR distance 60m |
|
Illuminator Control |
Auto; Manual |
|
Lens |
|
|
Lens Type |
Fixed-Focal |
|
Focal Length |
2.8mm/3.6mm/6.0mm |
|
Max. Aperture |
F1.6 |
|
? Field of View |
2.8mm Horizontal: 111¡ã,Vertical:59¡ã, Diagonal:134¡ã? 3.6mm Horizontal: 90¡ã,Vertical:48¡ã, Diagonal: 108¡ã? 6.0mm Horizontal: 57¡ã; Vertical: 30¡ã; Diagonal: 65¡ã |
|
Iris Type |
Auto |
|
Intelligence |
|
|
Smart Motion Detection |
Yes |
|
Perimeter Protection |
Intrusion,Tripwire(Support the classification of Vehicle, Human and Non-Motor) |
|
Face Detection |
Yes |
|
Object Detection |
Yes |
|
People Counting |
Yes |
|
Heat Map |
YES |
|
AI Search |
Work together with NVR |
|
Video |
|
|
Compression |
H.264H; H.264M; H.264B; H.265 |
|
Smart Compression |
H.264H+; H.264M+; H.264B+; H.265+ |
|
? ? Video Frame Rate |
Main Stream: 5MP 2688 (H) ¡Á 1520 (V) (1 fps¨C25/30 fps) |
|
Sub Stream: D1 (1 fps¨C25/30 fps) |
|
|
Third Stream: 720P (1 fps¨C25/30 fps) |
|
|
Stream Capability |
3 Streams |
|
Bit Rate Control |
CBR/VBR |
|
? Video Bit Rate |
H.264: 56 Kbps¨C8192 Kbps |
|
H.265: 56 Kbps¨C8192 Kbps |
|
|
Day/Night |
Color/B/W |
|
BLC |
Yes |
|
HLC |
Yes |
|
WDR |
120 dB |
|
White Balance |
Yes |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D NR |
|
Motion Detection |
OFF/ON (4 Areas, rectangular) |
|
Image Rotation |
180¡ã |
|
Mirror |
Yes |
|
Privacy Masking |
4 Areas |
|
Audio |
|
|
Built-in Mic |
Yes |
|
Built-in Speaker |
Optional |
|
Alarm |
|
|
Arming/Disarming |
NA |
|
Sound Alarm |
NA |
|
Light Alarm |
Yes |
|
Alarm Event |
Disconnection; IP Conflict; No SD Card; Capacity Warning; SD Card Error |
|
Network |
|
|
Network |
RJ-45 (10/100 Base-T) |
|
SDK and API |
Yes |
|
Network Protocol |
TCP/IP;UDP;HTTP;IGMP;ICMP;DHCP;RTP/RTSP;DNS;DDNS;FTP;NTP;PPPOE;UPNP;SMTP |
|
Interoperability |
ONVIF; CGI; P2P |
|
User/Host |
20 (Total bandwidth: 80 M) |
|
Storage |
FTP; Micro SD card (support max. 256 G/FAT32) |
|
Browser |
IE: IE8 and later; Chrome; Firefox |
|
Management Software |
PC Software(SVMS) APP |
|
Mobile Client |
IOS; Android |
|
Port |
|
|
Audio Input |
NA( 1 channel optional) |
|
Audio Output |
NA( 1 channel optional) |
|
Alarm Input |
NA( 1 channel optional) |
|
Alarm Output |
NA( 1 channel optional) |
|
Power |
|
|
Power Supply |
12V DC (¡À30%)/PoE (802.3af) |
|
Power Consumption |
Basic: 2.8 W; Max. 6.5W |
|
Environment |
|
|
Operating Conditions |
¨C30¡ãC to +60¡ãC (¨C22¡ãF to +140¡ãF)/Less than 95% RH |
|
Storage Conditions |
¨C40¡ãC to +60¡ãC (¨C40¡ãF to +140¡ãF) |
|
Protection Grade |
IP67 |
|
Structure |
|
|
Casing |
Metal |
|
Dimensions |
102 mm ¡Á ¦µ122 mm |
|
Net Weight |
630g |
