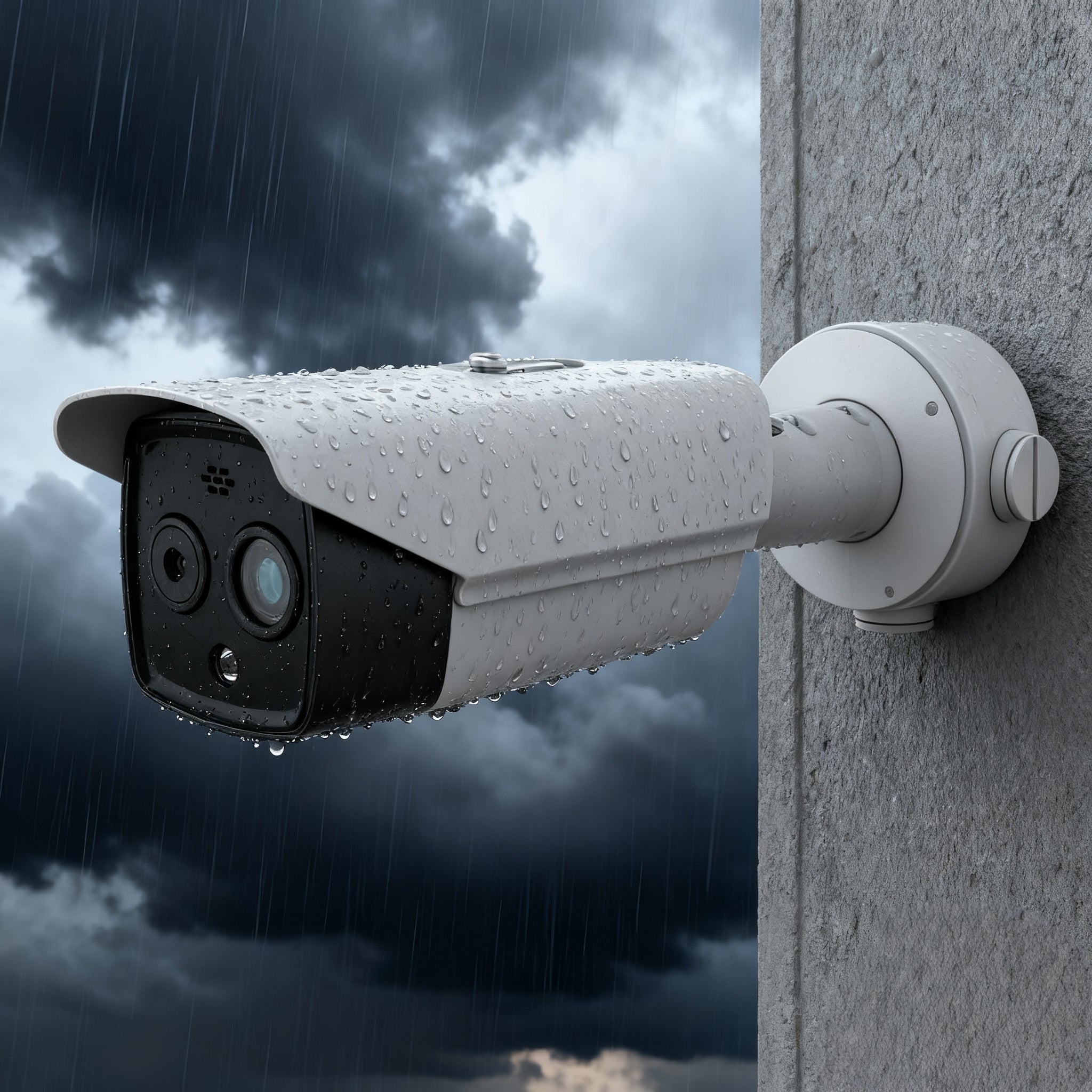

HIKVISION DS-2TD2617-3/QA Thermal & Optical Bi-spectrum Network Bullet Camera

Thermal & Optical Bi-spectrum Network Bullet Camera

• 160 × 120 resolution, 17 μm, VOx UFPA, NETD < 40 mK (25 °C, F# = 1.1)
• High accuracy temperature exception alarm, -20 °C to 150 °C (-4 °F to 302 °F), ± 8 °C (±14.4 °F)
• Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
• Support smoking detection algorithm
• Support sun-reflection filte
• High quality detector with 10 years guarantee

Product Data

• Thermal Module
• Image SensorVanadium Oxide Uncooled Focal Plane Arrays
• Resolution160 × 120
• Pixel Pitch17 μm
• Spectral Range8 μm to 14 μm
• NETD< 40 mK (@ 25 °C, F# = 1.1)
• Focal Length3.1 mm
• IFOV5.48 mrad
• Field Of View50.0° × 37.2° (H × V)
• Min. Focusing Distance0.2 m
• ApertureF1.1
• Digital Zoom× 2, × 4

• Optical Module
• Image Sensor1/2.7" Progressive Scan CMOS
• Resolution2688 × 1520
• Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
• Shutter Speed1s to 1/100,000s
• Focal Length4 mm
• Field Of View84.0° × 44.8° (H × V)
• Aperture (Range)F1.6
• WDR120 dB

• Image Effect
• Target ColorationYes. Supported in white hot and black hot mode.

• Illuminator
• IR DistanceUp to 40 m
• IR Intensity And AngleAutomatically adjusted

• Audible And Visual Alarm
• White Light RangeUp to 40 m
• Visual AlarmYes. White light alarm with adjustable flashing frequencies
• Audio Alarm

  Yes, for two types of audible alarm (VCA and Temperature Exception)

  2 preset voice alerts (one for each)

  6 importable user-defined voice alerts (6 options shared in the two types)

• Smart Function
• VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
• Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
• Temperature Range- 20 °C to 150 °C (- 4 °F to 302 °F)
• Temperature Accuracy± 8 °C (± 14.4 °F)
• General FunctionFire detection, smoking detection, sun-reflection filter,

• Video And Audio
• Main Stream

  Thermal:

  25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)

  Optical:

  50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  Thermal:

  25 fps (704 × 576, 352 × 288, 320 × 240)

  Optical:

  50 Hz: 25 fps (704 × 576, 352 × 288)

  60 Hz: 30 fps (704 × 480, 352 × 240)

• Video Compression

  Main Stream: H.265/H.264

  Sub-Stream: H.265/H.264/MJPEG

• Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM

• Network
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TLS
• Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• APIISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T)
• Simultaneous Live ViewUp to 20 channels
• User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
• SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
• ClientiVMS-4200, Hik-Connect
• Web Browser

  Live view (plug-in allowed) : Internet Explorer 11

  Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +

  Local service : Chrome 57.0 +, Firefox 52.0 +

• Interface
• Alarm Input2, alarm input (0-5 VDC)
• Alarm Output2, alarm output (alarm response actions configurable)
• Alarm Actionrecording/Relay output/Smart capture/FTP upload/Email linkage
• Audio Input

  1, 3.5 mm Mic in/Line in interface

  Line input: 2-2.4 V [p-p], output impedance: 1 KΩ ± 10%

• Audio OutputLinear level, impedance: 600 Ω
• Communication Interface

  1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

  1, RS-485 interface (half duplex)

• Analog Output1.0V [p-p]/75Ω, PAL/NTSC/BNC

• General
• Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• Power Supply

  12 VDC ± 25%, φ 5.5 mm coaxial power plug

  PoE (802.3af, class 3)

• Power Consumption

  12 VDC ± 25%: 0.5 A, Max 6 W

  PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max 6.5 W

• Working Temperature/Humidity

  Temperature: -40°C to 65°C (-40°F to 149°F)

  Humidity: 95% or less

• Protection Level

  IP67 Standard

  TVS 6000V lightning protection, surge protection, voltage transient protection

  IK10-rated housing

• Dimensions358.3 mm × 113.5 mm × 115.2 mm (14.10" × 4.47" × 4.35")
• WeightApprox. 1.76 kg (3.88 lb)
